JENIS ALAT UJI TAK RUSAK THICKNESS DENGAN PRINSIP ULTRASONIC

Selasa, 20 Desember 2011

JENIS ALAT UJI TAK RUSAK THICKNESS DENGAN PRINSIP ULTRASONIC

Steelgage II

The Steelgage II is the perfect choice for testing steel day after day. The Steelgage II is set with a single material velocity, simply turn it on and measure.
The display is easy to read, even in poor light conditions, with a bar graph giving an indication of the stability of the reading. Up to 200 hours of use from a single set of AA batteries.
Applications include: Corrosion & Pitting, Tube & Pipe, Tanks, Boilers.

Weight: 283.495 gms/10 ounces
Size: 63.5W x 120.7H x 31.8Dmm/2.5W x 4.75H x 1.25Dins.
Operating Temperature: -20 to 50ºC (-20 to 120ºF)
Case: Extruded aluminum body / nickel plated aluminum end caps. Resistant to impact and environmentally sealed. Built-in steel reference disk for probe zeroing.
Keypad: Sealed membrane that is resistant to both water and petroleum products. Four tactile-feedback keys.
Transducer: General purpose 5MHz 1/4” (6mm), with integral 4 foot cable. Custom transducers (1MHZ to 10 MHz frequency range) available for special applications.
Power Source: Two 1.5V alkaline AA cells. Typically operates for 200 hours.
Display: Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals. Selectable backlight - ON/OFF/Auto (illuminates during use). Measurements displayed in inches or millimeters. Bar graph indicates stability of reading.
Measuring Range: 0.63 to 199.99 millimeters (0.025 to 19.999 inches), assuming suitable material properties. Selectable imperial or metric units.
Resolution: 0.01 millimeters (0.001 inch) Four readings per second for single point measurements.
Velocity Setting: The Steelgage II is preset for steel. (5930 m/s / 0.233 in/ms)
Certification: Factory calibration traceable to national standards.
Steelgage II Kit Steelgage II5 MHz 1/4 inch transducer125 ml couplant2 x AA batteriesCarry CaseManual.





Sonagage III

The Sonagage III is ideal where the need is to reguarly test different materials or to enable testing of customer specific materials. Containing 8 test velocities of common materials and two that the user can custom set using the supplied simple
software program.
The display is easy to read, even in poor light conditions, with a bar graph giving an indication of the stability of the reading. Up to 200 hours of use from a single set of AA batteries.
Applications include: Corrosion & Pitting, Tube & Pipe, Tanks, Boilers, Glass, Plastics.

Weight: 283.495 g/10 ounces
Size: 63.5Wx 120.7H x 31.8D mm/2.5W x 4.75H x 1.25D ins.
Operating Temperature: -20 to 50ºC (-20 to 120ºF)
Case: Extruded aluminum body/nickel plated aluminum end caps. Resistant to impact and environmentally sealed. Built-in stainless steel reference disk for probe zeroing. Four readings per second for single point measurements.
Keypad: Sealed membrane that is resistant to both water and petroleum products. 5 tactile-feedback keys.
Transducer: General purpose 5MHz 1/4” (6mm), with integral 4 foot cable. Custom transducers (1MHz to 10 MHz frequency range) available for special applications.
Power Source: Two 1.5V alkaline AA cells. Typically operates for 200 hours.
Display: Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals. Selectable backlight - ON/OFF/Auto (illuminates during use).
Software: Comes complete with cable and software to transfer the custom velocities from the PC to the gauge.
Measuring Range: Measures from 0.63 - 199.99 mm (0.025m - 19.999 inches), selectable English or metric units.
Resolution: 0.01 millimeters (0.001 inch)
Velocity Range: 1250 - 10,000m/sec; 0.0492 - 0.3937 in/ms
Velocity Settings: The Sonagage III has 8 set velocities and 2 that are custom to the user’s applications. The set velocities are as follows:
1. Steel 4340-(.233); 5930 m/s
2. Stainless Steel 303-( .223 ); 5660 m/s
3. Aluminum 2024 - ( .251 ); 6320 m/s
4. Cast Iron-(.179 ); 5893m/s
5. Plexiglass-(.106 ); 2692 m/s
6. PVC - (.094); 2395 m/s
7. Polystyrene(.092); 2337m/s
8. Polyurethane-(.070 ); 1750 m/s
9. Custom
10. Custom
Certification: Factory calibration traceable to national standards.
Sonagage III Kit Sonacoat III5MHz 1/4 inch transducer2 x AA batteries125ml CouplantCarry CaseManual.









T-GAGE IV

The T-GAGE IV offers features that make your job easier and has been built to perform in the roughest of industry conditions.
Transducers
A Dual element transducer is included. Specific trans- ducers are available for Cast Iron, Plastics, Fibreglass, Steel and Glass.
Applications:
Corrosion & Pitting, Tube & Pipe Tanks, Boilers, Glass: a variety of applications etc..

Model + DL MM MMDL
Weight 285 g with batteries
Size 63.5w x114.3hx31.5d mm
Operating Temperature -30° to 50° C
Power source Two 1.5V alkaline or 1.2V NiCad AA cells; Typically operates for 200 hours on alkaline and 130 hours on NiCad. Display flashes when battery is low. Unit turns off automati- cally when battery is too low to operate reliably
Case Extruded aluminium body with nickel-plated alu- minium end caps. Resistant to impact and environmentally (gasket) sealed.
Keypad Sealed membrane resistant to both water and petroleum products. Nine tactile-feedback keys.
Display Multi-function 4.5 digit LCD with 0.500 inch numerals, backlit for use in poor light conditions. Backlight is selectable: on/off /auto ( illuminates only when taking a measurement ). Measurements displayed in millimetres and metres/second or inches and inches
/microsecond. Bar graph to indicate reading stability.
Measuring P-E Pulse-Echo Mode (Pit & Flaw) Measures from 0.63 to 500mm (0.025 to 19.999 inche
Measuring E-E Echo-Echo Mode (Through Paint & Coatings) measures 2.54 to 25.4 mm (0.1 to 1.0 inch).
Velocity Range 1250-10000 m/s
Measuring units Selectable imperial or metric units
Measuring speed Four readings per second for single point measurements or 16 p/s in Scan mode, captures the minimum thickness
Calibration Single and Two point calibration option included
Resolution 0.01 mm
Features Differential mode - Enter the acceptable thickness value, unit will display +/- the difference from the value entered. Alarm mode - Enter a minimum acceptable thickness value. If the measure- ment falls below the minimum, a red led will illuminate and an alert beeper will sound. If measurement is above minimum value a green led will illuminate. Data output - Rs232 output sends data to a serial printer, a computer or other external storage devices
Atmintis 10 files with 100 readings. OBST indicates no reading







Microgage II

Designed with the user in mind, the MICROGAGE II utilises state-of-the–art digital technology to produce fast and accurate readings.
The Echo-to-Echo allows the measurement of the thickness of materials without removing paint or coatings.
The Plastics mode in the Microgage II P, makes this gauge ideal for plastics manu- facturing applications, mouldings and production industries.
FEATURES
· Alarm mode
· Differential Mode
· RS 232 data output port
Weight: 285 g with batteries (10 ounces)
Size: 63.5 W 120.7 H x 31.8 D mm
Operating Temperature: -30° to 50° C (-20° to 120° F )
Case: Extruded aluminium body with nickel- plated aluminium end caps. Resistant to impact and environmen- tally sealed
Keypad: Sealed membrane resistant to both water and petroleum products. Nine tactile-feedback keys
Transducers: single element with delay tip. 10 - 22 mhz frequency range locking quick disconnect lemo connector. 4 foot cable. Customised transducers for plastics mode are built with differing acoustic impedance to plastic. Custom transducers available for special applications.
Overall Range: Measures from 0.15 to 25.40 mm (0.0060 to 1.0000 inches). Switch to select English or metric units.
Velocity Range: 1250-10000 m/s
Resolution: 0.001 mm
Alarm mode: Enter a minimum acceptable thickness value. If the measurement falls below the minimum, a red led illuminates and an alert beeper will sound. If measurement is above the minimum value a green led illuminates
Data output: Rs232 output sends data to a Serial printer, a computer or other ex- ternal storage devices


Display: Multi-function 4.5 digit lcd with 0.500 inch numerals, backlit for use in poor light conditions. Backlight is selectable: on / off / auto (illuminates only when taking a measurement ). Measurements displayed in millime- tres and metres/second or inches and inches/microsecond, Bar graph to indicate reading stability
Units: millime- tres and metres/second or inches and inches/microseconds
Power source: Two 1.5v alkaline or 1.2v nicad AA Cells. Typically operates for 150 hours on alkaline batteries and 100 hours on nicad batteries. Display flashes when battery is low. Unit turns off automatically when bat- tery is too low to operate reliably.





ALPHAGAGE

The Alphagage is an A-Scan verification corrosion gauge for use on difficult to measure corroded materials, which often give rise to spurious or erroneous readings when using conventional digital read out thickness meters.
Typical applications are offshore platforms, petro-chemical pipes and vessels, ship surveys and thick attenuative materials such as plastics, GRP and cast iron etc.
Designed with harsh environments in mind, the rugged case is sealed to IP 67 inhibiting moisture ingress from wet weather and high humidity conditions.
Test Range: 0 - 5mm (0.2 in) up to 0-500 mm (20 in.)
Velocity: 2000 to 9999 m/s (0.0787 to 0.3937 in/μs)
Probe Zero: 0 to 10000 μs.
Gain: 0 to 80dB in 0.5dB steps.
Test Modes: Pulse echo and transmit/receive.
Transmitter: 20, 60 and 200 volt, variable pulse width 50, 100, 250 ns.
Update Rate: 5 to 10Hz screen refresh rate.
Rectification: Full wave and positive or negative half wave.
FrequencyRange: 1 - 7.5 MHz (-3dB).0.8 to 9.5 MHz (-6dB) HF Version 1.3 -11 MHz (-3dB)0.7 - 13 MHz (-6dB)
Units: Metric (mm) or inch (in).
Display: LCD: 48 x 71 mm (1.98 x 2.8 in) viewable area.Variable contrast setting & Backlight.
A-Scan: 128 x 96 pixels, outlined or filled trace.
Measurement Resolution: 0.01 mm (0.001 in).
Minimum Thickness: Less than 0.6 mm (0.0237 in) dependant on transducer.
Measurement Mode: Depth to first Echo.Echo-to-Echo. Minimum Thickness Mode. V path correction for dual probes.
Time Corrected Gain: 80 dB dynamic range, maximum 6dB per microsecond.
Calibration: Zero block Two point calibrationManual input of Zero and Velocity.
File Storage: Storage for up to 100 files or worksheets.
Panel Storage: Storage for 100 calibration set ups.
Probes: 10 pre-defined Sonatest transducers.5 user configurableDual, single or delay transducers available.
Thickness Logging: Storage for 2500 readings with A-Scan8000 readings with thickness onlyRecall of stored thickness and A-scan 48 character alpha numeric thickness identificationHistorical phrase and thickness reading
Operator ID: 16 characters
Freeze Mode: Manual and Auto freeze mode available
Alarm: Minimum thickness alarm
Help: On-board Help facility
Battery: Ni-cad 1Ah. 8 hours battery durationAuto shutdown to preserve battery life.
Charger: 90 to 260 V ac. 47 - 440Hz 2 hour fast chargeDischarge feature for battery conditioningOperating temperature 10 to 30 degrees Celsius
Transducer Sockets: Fischer (Lemo 00)
Enclosure: Sealed to IP67
Keypad: Sealed keypad with tactile and audible response.
Serial Communications: Infra-red communications to printer and PC.
Aladdin Software: Thickness logging software for PC interfacing and reading analysis.Windows TM based software. Full bi-directional transfer of data between the PC and the Alphagage.
OperatingTemperature: -10°C to + 55°C (14 to 131°F).
Size: 285 x 120 mm maximum (11.2 x 4.7 in)
Weight: 0.88 kg (1.94lbs) includes battery.

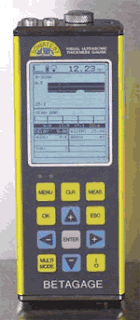

BETAGAGE

The BETAGAGE is an affordable yet versatile ultrasonic thickness/corrosion gauge utilising a variety of viewing options to suit the operator and application.
Features:
· Measures to first echo (flaw/pit) or echo-echo (thru paint).
· Repeatability Bar Graph to indicate stability of reading.
· Hi and Lo tolerance limits with audible/visual alarms.
· Fast Scan mode holds minimum thickness reading.
· Internal data logger stores 12,000 readings/ A-scans.
· Windows PC software for transferring data, RS232 compatible, included in kit.
· Measurement resolution +/- 0.01mm (0.001 in).
· Single or 2 point calibration, or recall velocity from on-board library.
· Wide choice of transducer types available.
· A-Scan View Uses 3 x AA cells to give 150 hours operation.

Weight: 383 g (13.5 oz) with batteries.
Size: 63.5 W x 165 H x 31.5D mm
Operating Temperature: -10° to 60°C (-14° to 140°F).
Keyboard: Membrane switch with twelve tactile keys.
Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Data Output: Bi-directional RS232 serial port. Windows® PC interface software.
Display: 45.7mm VGA grayscale display. (240 x 160 pixels).Viewable area 62 x 45.7mm (2.4 x 1.8 in) EL backlit (on/off/auto).
Measurement Modes: Pulse-Echo (flaws, pits); Echo-Echo (thru-paint)
Pulser: Square wave pulser with adjustable pulse width (spike,thin, wide).
Receiver: Manual or AGC gain control with 40dB range, depending on mode selected.
Timing: 20 MHz clock with ultra low power. 8 bit digitizer.
Measuring Range: Pulse-Echo Mode: (Pit & Flaw Detection) measures from 0.63 to 254 mm (0.025 to 9.999 ins).Echo-Echo Mode: Thru Paint & Coatings) measures from 2.54 to 102 mm (0.1 to 4.0 ins).Range will vary +/- depending on the thickness of coating.
Resolution: +/- 0.01mm (.001in)
Velocity Range: 1250 to 9999 meters/sec. Single and Two point calibration option, or selection of basic material types.
Units: English & Metric
Display Views A-Scan Rectified +/- (flaw view) RF (full waveform view)B-Scan Cross sectional view. Display speed of 15 secs per screen.Large Digits Standard thickness view. Digit Height: 10mm (0.4 in)Scan Bar Thickness 6 readings per second. Viewable in B- Scan and Large Digit views.
Repeatability Bar Graph indicates stability of reading.
Certification Factory calibration traceable to national standards.


Data Logger (Internal) 12,000 pages of memory (alpha numeric storage).
Page contents: 1 reading and 1 waveform per page. OBSTRUCT to indicate inaccessible locations.
Memory: 16 megabit non-volatile ram.
Transducer Types Dual Element (1 to 10 MHz). Locking quick disconnect“00” LEMO connectors. Standard 1.2m cable. Custom transducers and cable lengths available for special applications.
Setups: 64 user-definable setups. Factory setups can also be edited by the user.
Gates: Single gate in pulse-echo mode, or single gate with holdoff in echo-echo mode. Adjustable threshold.
Selectable Transducers: Selectable transducer types withbuilt-in dual path error correction for improved linearity.
Alarm Mode: Set hi and lo tolerances with audible beeper and visual LEDs.





MICROGAGE VX

The Microgage VX is fitted with an adjustable square wave pulser, which provides the flexibility necessary for both high resolution and penetration requirements.
The selectable viewing options to provides users with additional flexibility during operation: (RF waveform, +/- Rectified waveform, Large Digits with Scan Bar).
The A-Scan rectified mode of this model is commonly used for detecting flaws/pits in pulse-echo mode, measuring thru-paint and coatings in echoecho mode. Whereas the time-based B-Scan feature displays a cross section of the test material.
This is mainly used to display the profile of the opposite surface of the test material.
Adjustable resolution settings enhance the Microgage VX’s flexibilty, with the AGC gain control allowing multiple echo and thru-paint measurement.
Other versitile features of this unit includes, multiple calibration options; One-Point, Two-Point, or selection from a material list and 16 factory setups and 48 user-defined setups, with the user-defined setups that can be edited for custom applications.
Equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs. The High Speed Scan feature speeds up the inspection process by taking 32 measurements per second. Removing the transducer from the test material displays the minimum measurement scanned.
The Auto-Find feature locates the detection point(s) and adjusts the display settings to bring the waveform into view.

Weight: 13.5 ounces (with batteries).
Size: 63.5 W x 165 H x 31.5D mm
Operating Temperature: -10° to 60°C
Keyboard: Membrane switch with twelve tactile keys.
Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Data Output: Bi-directional RS232 serial port. Windows® PC interface software.
Display 45.7mm VGA grayscale display. (240 x 160 pixels). Viewable area: 62 x 45.7mm. ELbacklit (on/off/auto).
Display Views: A-Scan: Rectified +/- (halfwave view), RF (full waveform view)B-Scan: Time based cross section view. Display speed of 15 secs per screen.Large Digits: Standard thickness view. Digit Height: 10mm.
Scan Bar Thickness: 6 readings per second. Viewable in B-Scan and Large Digit views.
Repeatability Bar Graph: Indicates stability of reading.
Measurement Modes: Pulse-Echo (Precision-General purpose); Interface-Echo (Precision-Thick materials); Echo-echo (Precision- thru paint).
Pulser: Square wave pulser with adjustable pulse width (spike, thin, wide).
Receiver: Manual or AGC gain control with 40dB range, depending on mode selected.
Timing: 40 MHz with ultra low power; 8 bit digitizer.
Power Source: Three 1.5 alkaline or 1.2V NiCad AA cells. Typically operates for 150 hours (alkaline) and 100 hours (NiCad). Auto power off if idle for 5 minutes. Battery Status meter.
Data Logger (Internal) 12,000 readings & waveforms (alpha-numeric storage). OBSTRUCT to indicate inaccessible locations.
Memory: 16 megabit non-volatile RAM.
Transducer Types: Single Element (1 to 20 MHz). Locking quick disconnect “00” LEMO connectors. Standard 4 foot cable. Custom transducers and cable lengths available.
Setups: factory and 48 custom user-defined setups.
Gates: Single gate in contact mode. Single gate with hold off in interface - echo, echo-echo and plastics mode. Adjustable threshold.
Multiple Measurement Mode: Selectable modes for a use with a variety of applications.
Alarm Mode: Set hi and lo tolerances with audible beeper and visual LEDs.
Fast-Scan Mode: Takes 32 readings per second and displays the minimum reading found when the transducer is removed. Display continuously updates while scanning.
Measuring Range: Interface-Echo Mode: Steel 1.27 - 25.4mm;Plastics from 0.127mm.Echo-Echo Mode: Steel 0.15 - 12.7mm Pulse-Echo Contact: Steel 1 - 254 mm (0.040-10.0 ins); Plastics from 0.254mmEcho-Echo Contact: Steel thru paint 2.54 - 76.2mm
Resolution: Selectable +/- 0.01mm; +/- 0.001mm
Velocity Range: 1250 to 9999 meters/sec; One and Two point calibration option, or selection of basic material types.
Units: English & Metric
Certification: Factory calibration traceable to national standards.



Tidak ada komentar:
